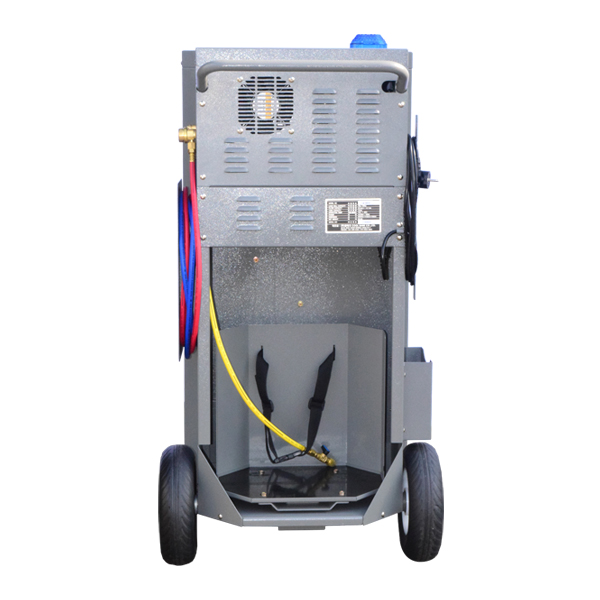

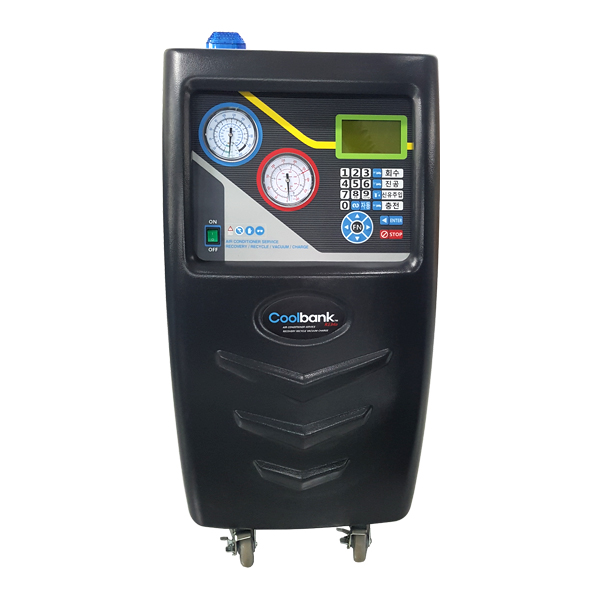

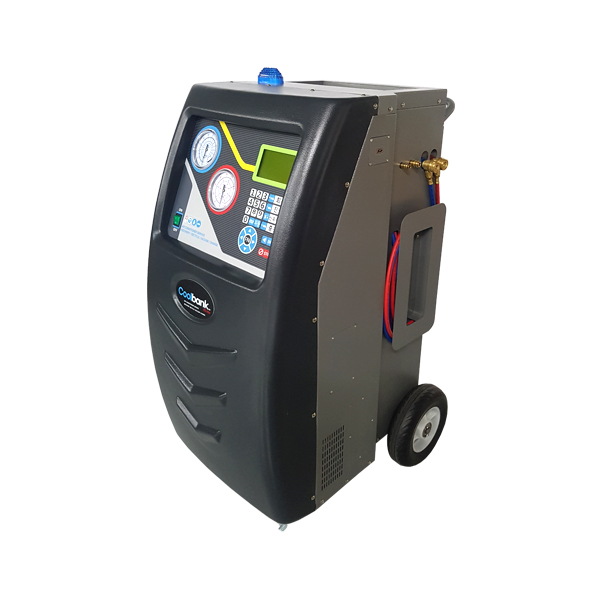

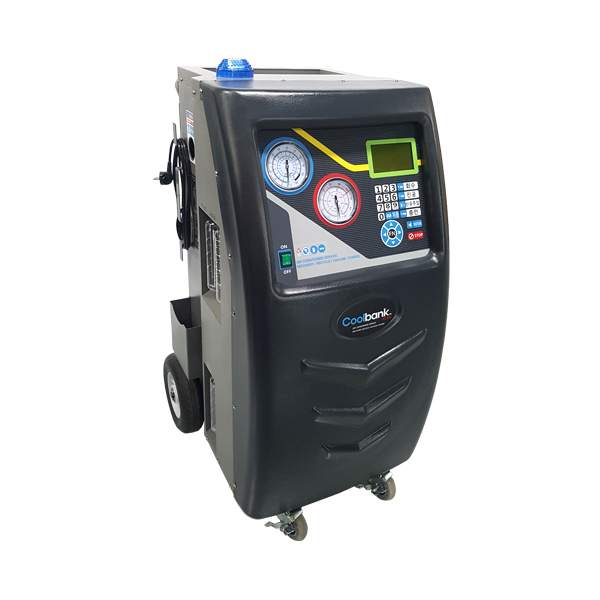

CB-885H (R134a)
페이지 정보
본문
특징
Hybrid, EV available
Automatic function of all processes
Refrigerant recovery rate of 98% or more
Refill tank can be charged by applying two scales
FLSUH Available
Support vehicle specifications by installing SD card
Non-condensing gas purging function
High performance heat exchanger
Prevention of PAG / POE oil mixing
High and low pressure line cleaning function
Automatic air purge
Vacuum leak diagnosis function
Refill tank gas transfer
Work progress warning light installed
Control buttons with good operability and visibility
Temperature regeneration function
Printer output function (optional)
| MODEL | CB-885H | Refrigerant recovery rate | 98%~ |
|---|---|---|---|
| Refrigerant Type | R-134a(HFC) | Vacuum leak test | Apply |
| Automatic waste oil discharge | Apply | Max.Pressure | 25Bar (Safety Switch) |
| Air Purge | Auto | Car Database | SD Card (Vehicle specification input) |
| New Oil | PAG / POE | Quick Adaper | Parker (Made in USA) |
| Charge Function | Apply | Refrigerant container | Gas Safety Corporation Certification (KGS) |
| Keyboard | Tact Switch Type(23key) | Condensor | DUAL Type |
| Controler | MPU | Filter Dryer | 33sq,In |
| Sensor,s/w | Digital pressure sensor, Loadcell | Load Cell | 1~10g / 35kg(2ea) |
| Display | Graphics LCD (240*128 DOT) | Compressor | AC220V / (8.16 Btu/Wh) |
| Vehicle connection hose | 3 Meter (high pressure, low pressure) | Vacuum Pump | AC220V / (1/2 Hp) |
| Block | High precision processing | Tank Capacity | 12.5 Liter |
| Pressure Gauge | 3 "1/2 inch (0 point adjustable) | Case | Advanced resin molding and steel structure |
| Solenoid Valve | High pressure refrigerant only | Operation Temp | 10 ℃ ~ 45 ℃ (high temperature test passed) |
| Dimention | 750*500*1080 | Power | AC220V / 60Hz (50Hz optional) |
| Printer | Therminal Printer (Optional) | Weight | 85~87KG |
