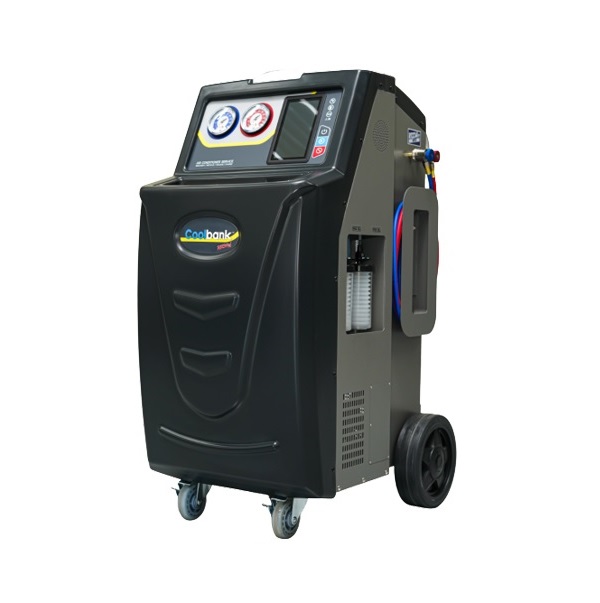

CBR-X10 (R134a)
페이지 정보
본문
특징
EV, hybrid vehicle all available
Double condensing structure prevents overpressure from rising
New concept perfect recovery system applied (patent pending)
Fully automatic operation of flush, recovery, vacuum, new oil injection, and refrigerant charging
EN837-1 Certificated
2 Stage High Performance Vacuum Pump
7” TFT Color LCD (Touch Applied)
New oil (PAG, POE) / waste oil, precision electronic scale measurement control
Multi Language Support
Support voice function
Save and print job results and error status
Convenient vehicle search function. (Data can be modified at the discretion of the operator)
Screen brightness, volume control function
Work Progress LED (7 color)
Convenient system update (USB, WIFI)
Simple operation buttons and easy UI system
PARTS | SPECFICATION | REMARKS |
| CONTROL | MPU*2, ARM(Quad Core) | OS Attached |
| DISPLAY | 7” TFT Color LCD | IPS, Touch Panel |
| ALERT | 7 Color | RGB LED |
| KEYBOARD | TACT TYPE | 3 Keys |
| PRESS GAUGE | -1~16 / -1~35 BAR | 80∮ / Fine adjustment of 0 points |
| SOLENOID | Exclusive use for high pressure refrigerant | orifice 2ø, 3ø |
| BLOCK | Fine adjustment of 0 points | Special Anodized |
| HEAT CORE | Dual Type | PIN Copper Tube, Condenser |
| QUICK ADAPTER | Parker | Made in USA |
| FILTER DRYER | 3/8” SAE Flare Type | 53 sq.in 4.2ton |
| OIL BOTTLE | Silicone Sealed Type | Prevention of moisture and external pollution |
| LOADCELL | 1g / 35kg | Recovery tank (shock absorption system) |
| 0.1g / 3kg | PAG, POE, Waste Oil | |
| COMPRESSOR | High temperature and high pressure | 220V 60Hz |
| VACUUM PUMP | R134a (Dual Stage) | 220V 60Hz |
| TANK CAPACITY | 12.5Liter | KGS Certified |
| MAX PRESSURE | 25Bar | Safety Switch Attached |
| CASE | Plastic / Steel | PE,ABS / 3.2T,1.6T |
| PRINTER | Thermal printer | Operation result / error status |
| SOUND | 2ch Stereo | RMS 15W * 2 |
| STORAGE | USB / TF / FLASH | DDR 5G |
| NETWORK | Wi-Fi | Bluetooth (Option) |
| USE TEMP | 10 ~ 45℃ | Low temperature Injection possible |
| POWER | AC 220V / 60HZ | 50Hz (Option) |
| WEIGHT | 95kg | ㅡ |
| DIMENSION | 580(W)*1120(H)*780(D) | ㅡ |
